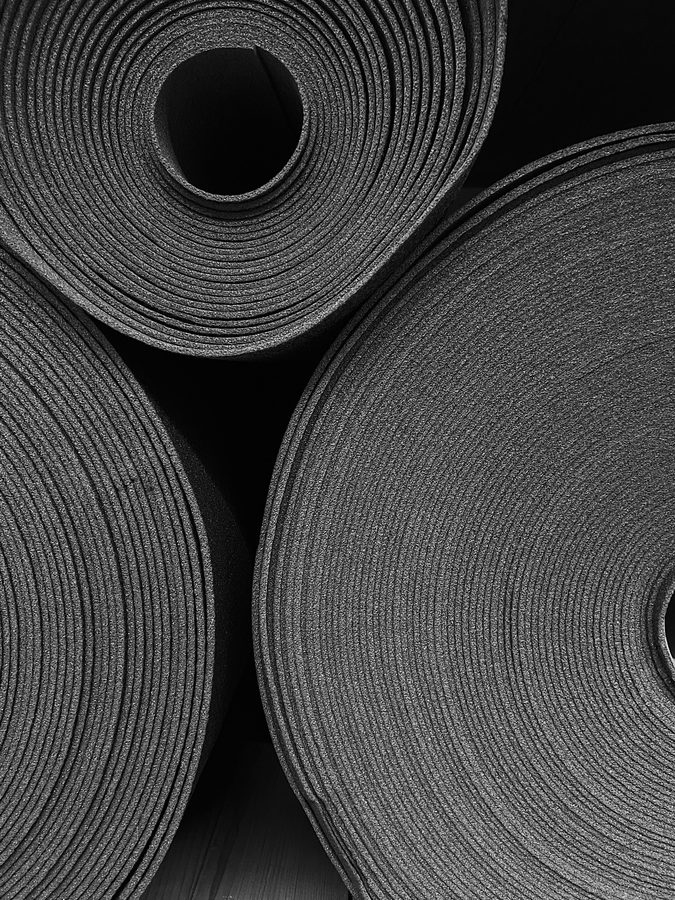

Nonwoven Geotextiles
Needle-punched and thermally bonded nonwoven geotextiles for filtration, separation, drainage, and protection applications. Our nonwoven grades meet DOT specifications for highway and municipal projects across the Northeast.
Commonly used in subsurface drainage systems, retaining wall backfill, pavement edge drains, and erosion control applications where water must pass through while soil particles are retained.
Typical Specifications
| Weight range | 2 oz/yd² – 16 oz/yd² |
| Grab tensile strength | 90 – 300+ lbs |
| Puncture resistance | 40 – 120+ lbs |
| Permittivity | 0.05 – 2.0 sec⁻¹ |
| AOS (apparent opening size) | US #20 – #100 sieve |
| Common roll widths | 12.5 ft, 15 ft, 17.5 ft |
Request a Quote

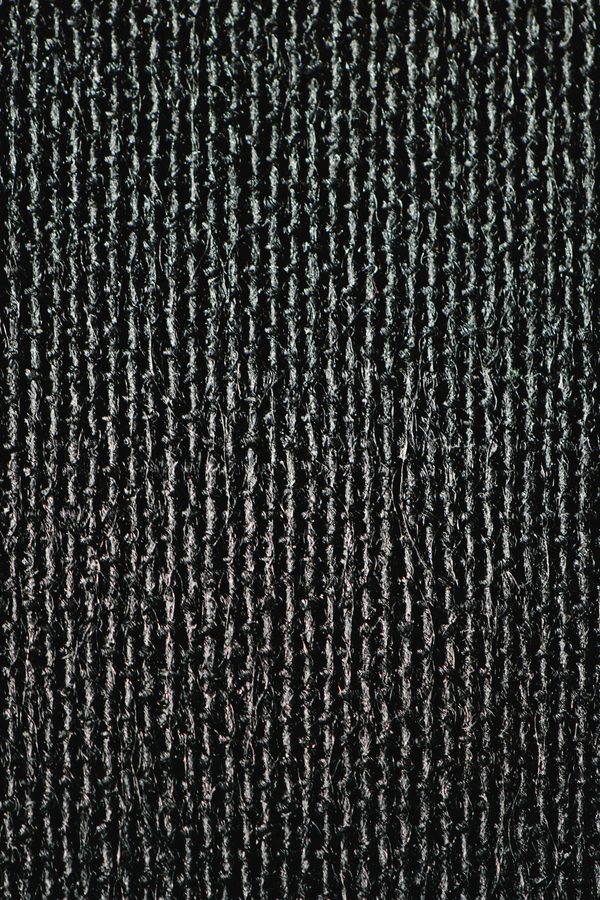

Woven Geotextiles
High-tensile woven polypropylene geotextiles for subgrade reinforcement, road stabilization, and load distribution. Woven fabrics provide the strength needed for challenging site conditions where soft subgrades require mechanical improvement.
Ideal for unpaved road construction, parking lot base reinforcement, embankment stabilization, and separation of subgrade soils from aggregate base layers.
Typical Specifications
| Weight range | 4 oz/yd² – 12 oz/yd² |
| Tensile strength (MD) | 200 – 800+ lbs/ft |
| Elongation at break | 15% – 25% |
| CBR puncture | 500 – 1,500+ lbs |
| UV resistance | 70% retained @ 500 hrs |
| Common roll widths | 12.5 ft, 15 ft, 17.5 ft |
Request a Quote
Geogrids
Biaxial and uniaxial geogrids for subgrade reinforcement and base course stabilization. Geogrids interlock with aggregate to create a mechanically stabilized layer that distributes loads and reduces rutting under traffic.
Widely used in parking lot construction, unpaved haul roads, retaining wall reinforcement, and slope stabilization. Geogrids can significantly reduce aggregate thickness requirements — saving cost and material.
Typical Specifications
| Type | Biaxial & Uniaxial |
| Aperture size | 1" × 1" to 2" × 2" |
| Tensile strength (MD) | 1,000 – 4,000+ lbs/ft |
| Junction efficiency | 90%+ |
| Material | HDPE / Polypropylene |
| Common roll widths | 13 ft, 16.4 ft |
Request a Quote
